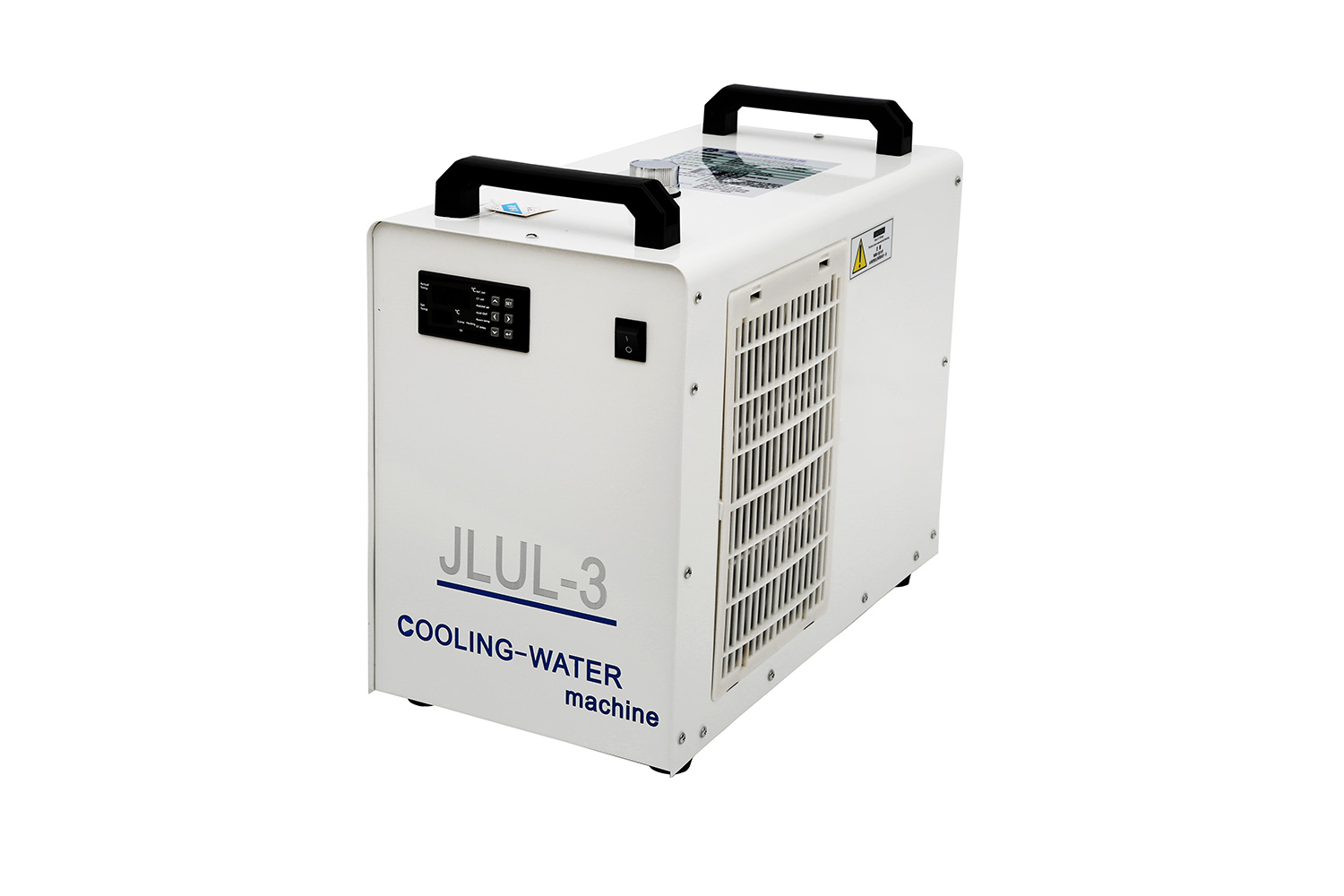

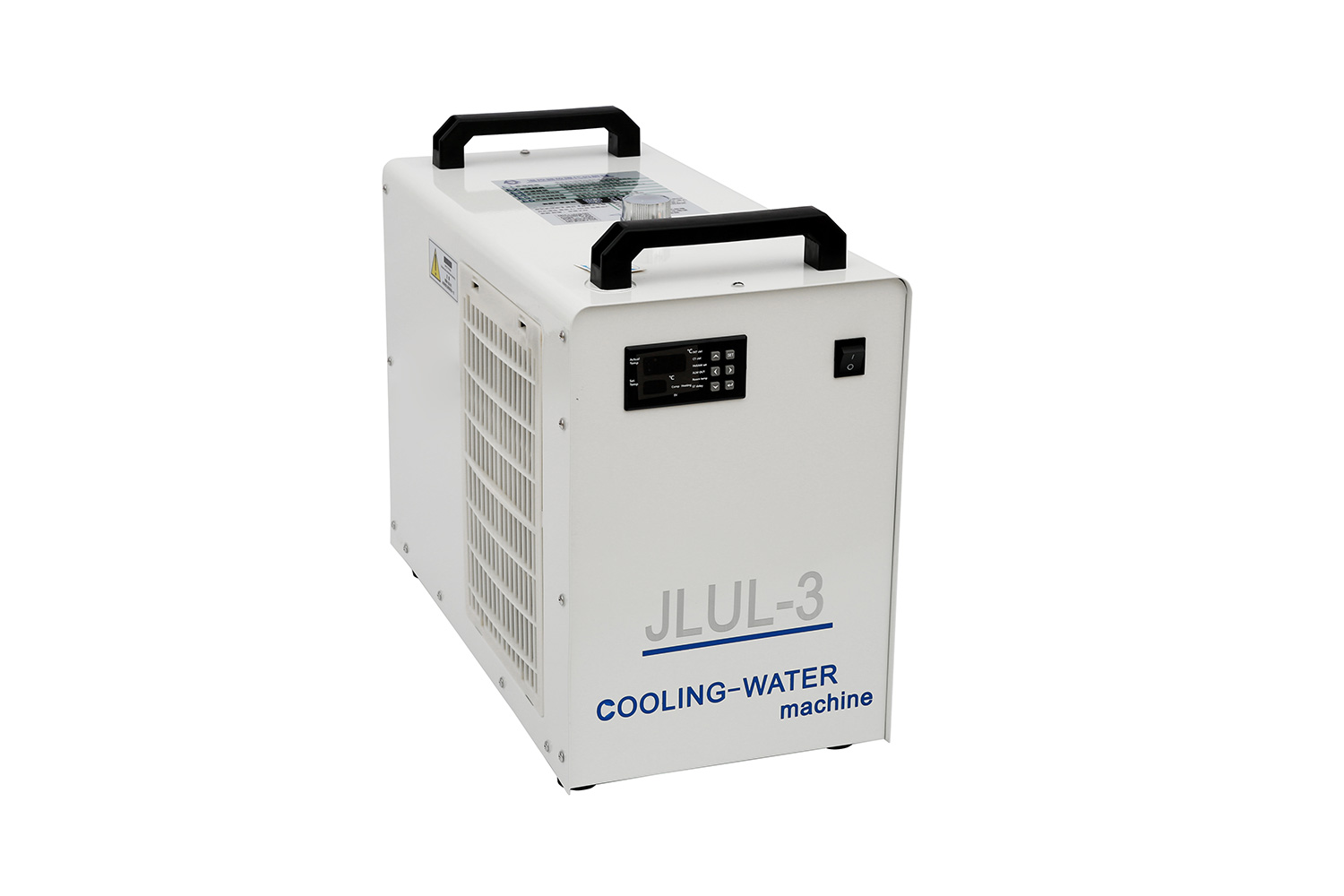

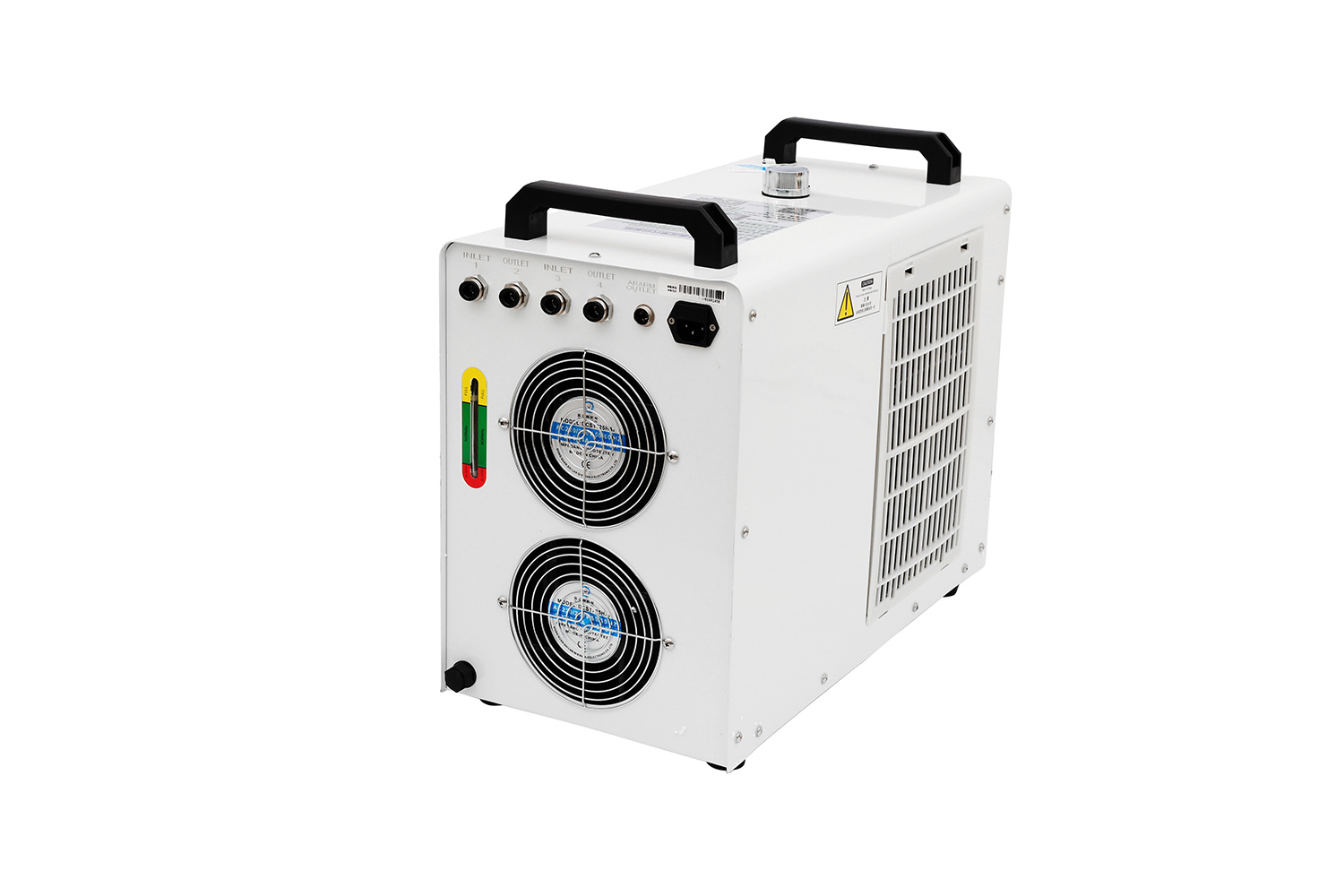

JLUL-3 Ultraviolet laser chiller

JLUL-3 Ultraviolet laser chiller

1. The refrigeration capacity is 1100w, and the environment-friendly refrigerant can be used, and the refrigeration performance is stable;
2. Dual nixie tube display, the actual temperature and the set temperature are clear at a glance;
3. Temperature control precision control range is small (± 0.2 °C);
4. lt has heating function to meet the rapid and normal use of equipment in cold environment;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. it has the function of compressor overcurrent and overload protection to extend the service life of the compressor.
  • Energy Saving

  • Over Temp Alarm

  • Overcurrent Protection For compressor

  • Flow Alarm

  • Dual Temp Control

JLUL/JLUP UVLaser&Ultrafast Series Selection Guide:
MODEL Temperature Precision Rate Flow Max.Pump Pressure Refrigerant Applicable fiber laser power
JLUL-3 0 0 0 0 0
JLUL-5 ±0.3℃ 13L/min 12M R-410A 3W-5W
JLUL-10 ±0.3℃ 13~15L/min 12~25M R-410A 10W-15W
JLUL-15 0 0 0 0 0
JLUP-20 ±0.1℃ 15L/min 25M R-410A 20W
JLUP-30 ±0.1℃ 75L/min 27M R-410A 30W
JLUP-40 ±0.1℃ 75L/min 27M R-410A 40W
JLUP60 ±0.1℃ 75L/min 44~53M R-410A 60W
Product Parameters
MODELJLUL-3
Operating voltage220V
Operating Current0.35-3.8
Operating frequency50HZ
Total rated power820W
Nominal cooling capacity357 Kcar/h
420KW
1420 Btu/h
Auxiliary heating power300W
Pump voltage and power24VDC/55W
Maximum head15m
Maximum flow rate23L/min
Water inlet and outlet10mm barbed connector; Optional quick-connector 8/10/12mm
Maximum cooling water tank capacity6L
Chiller Dimensions (L*W*H)560*470*285mm
Package Dimensions (L*W*H)650*380*540mm
Net Weight23KG
Gross Weight25KG
Note: The technical parameter information of the products on this site is for reference only and is subject to the final product as delivered.
