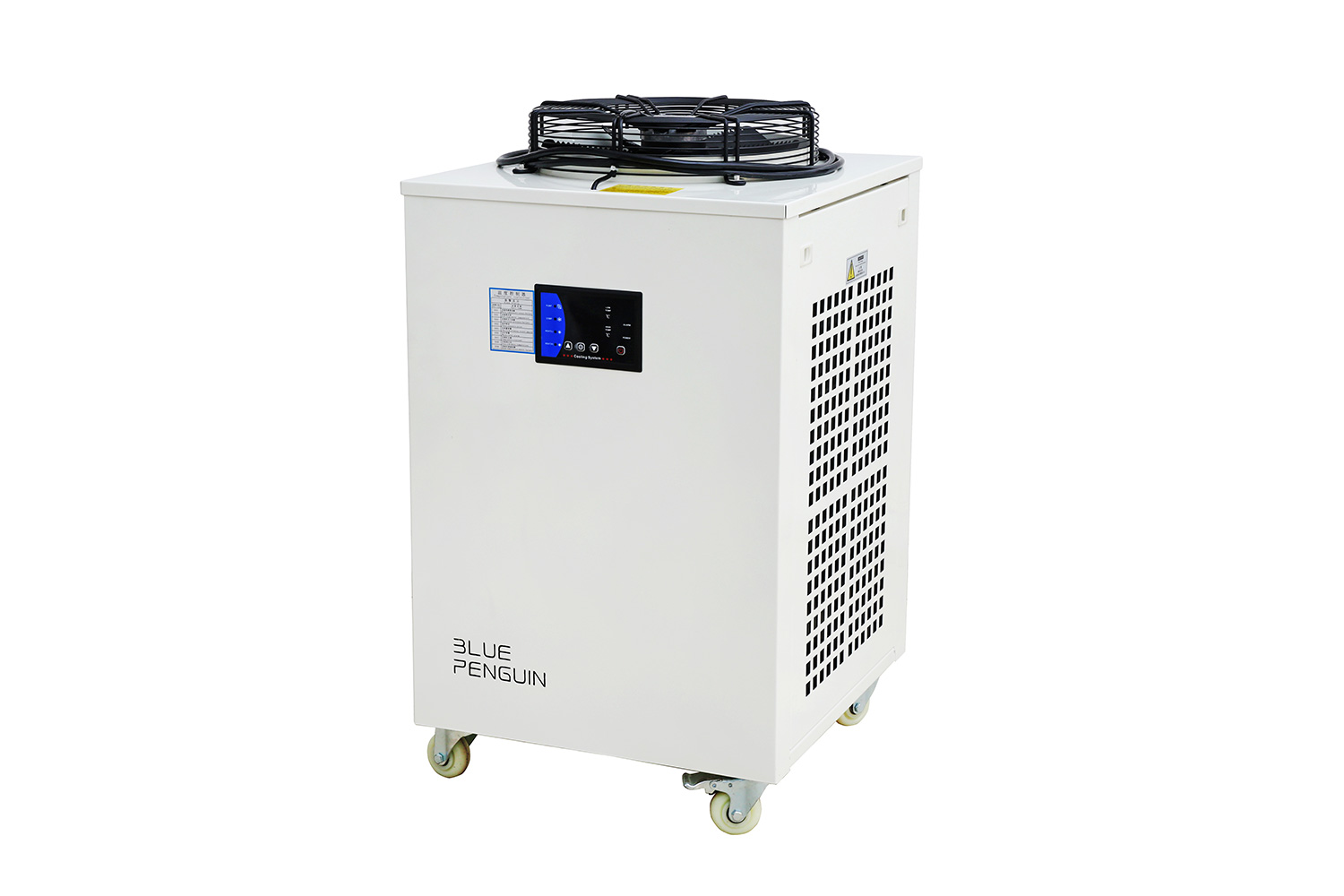

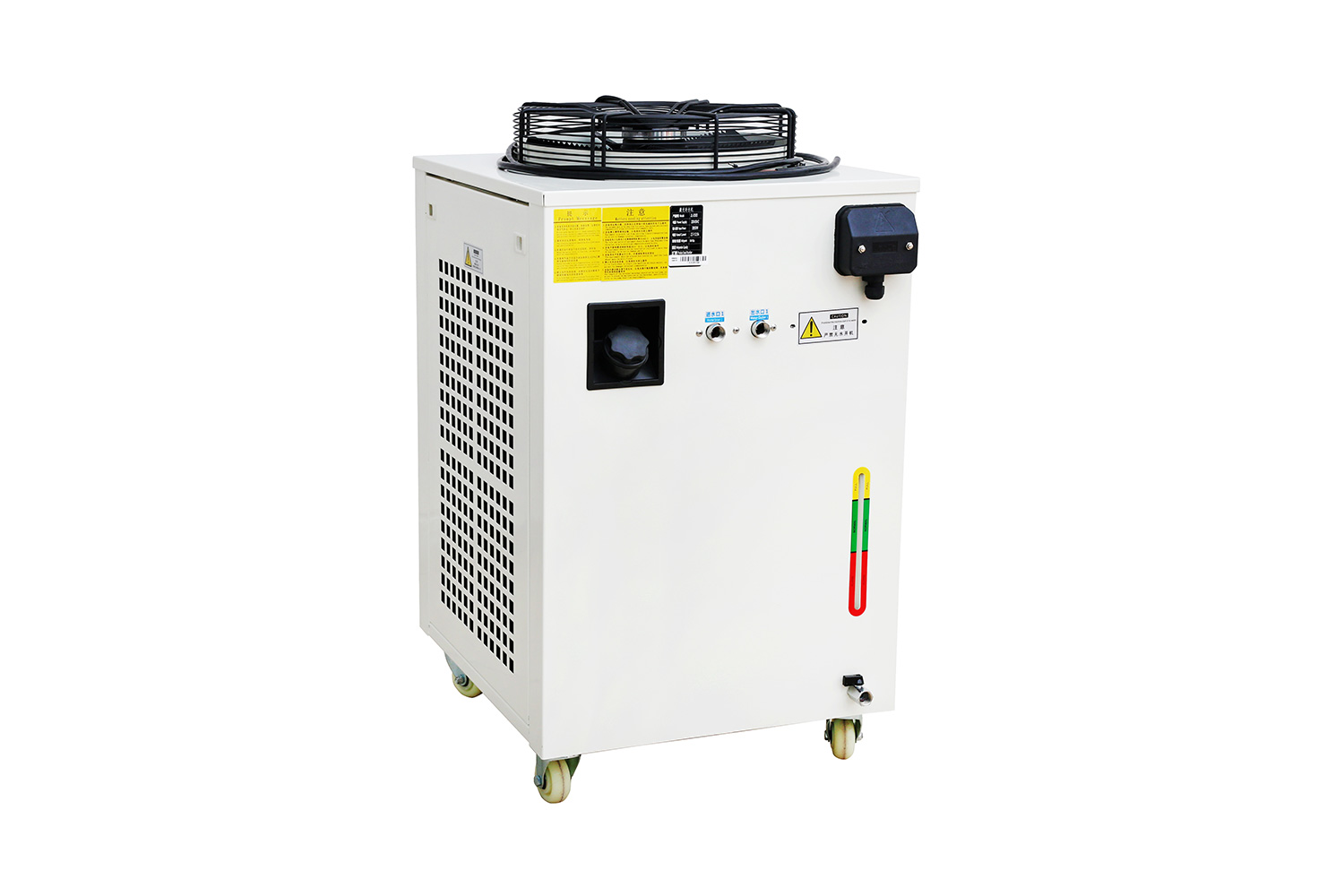

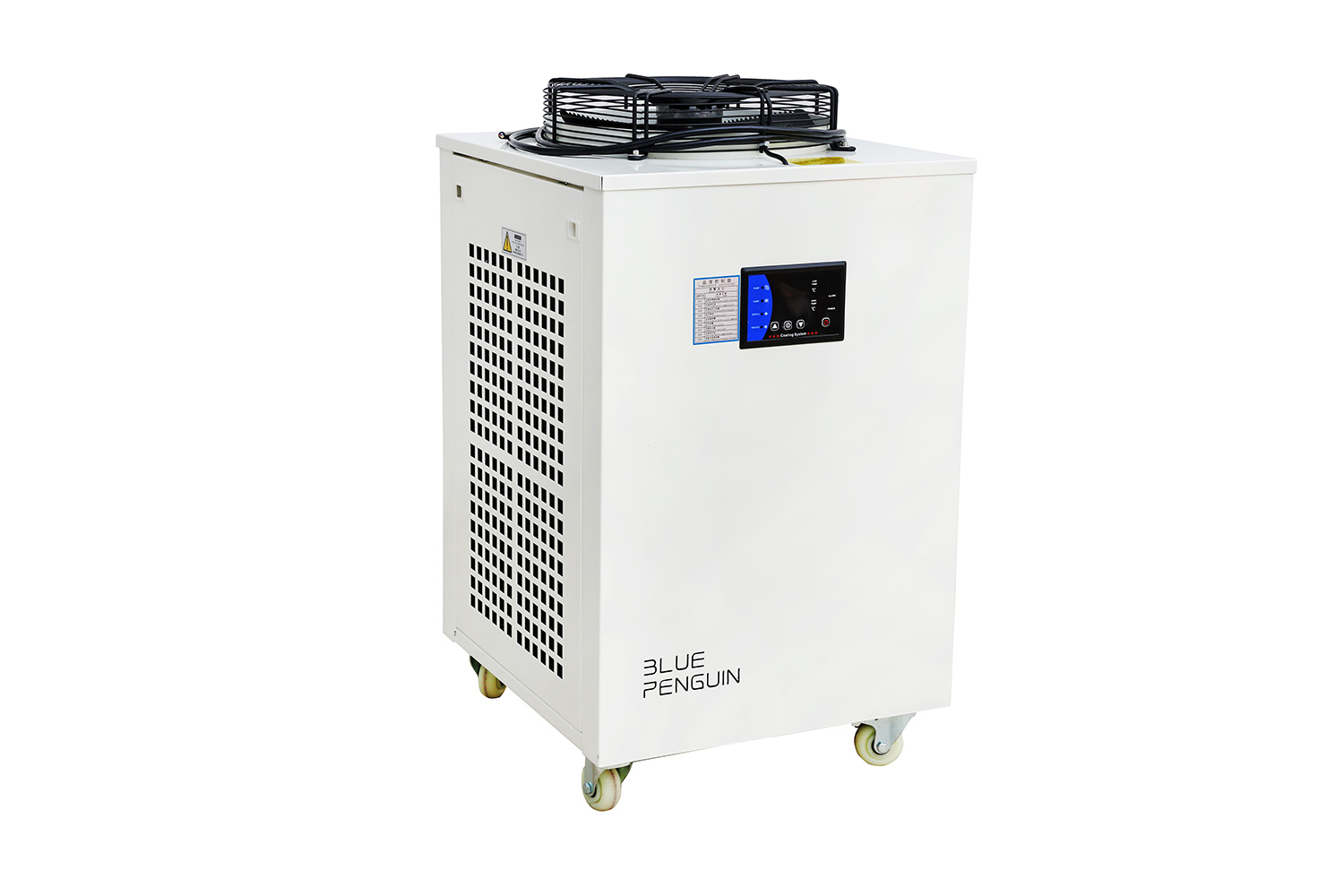

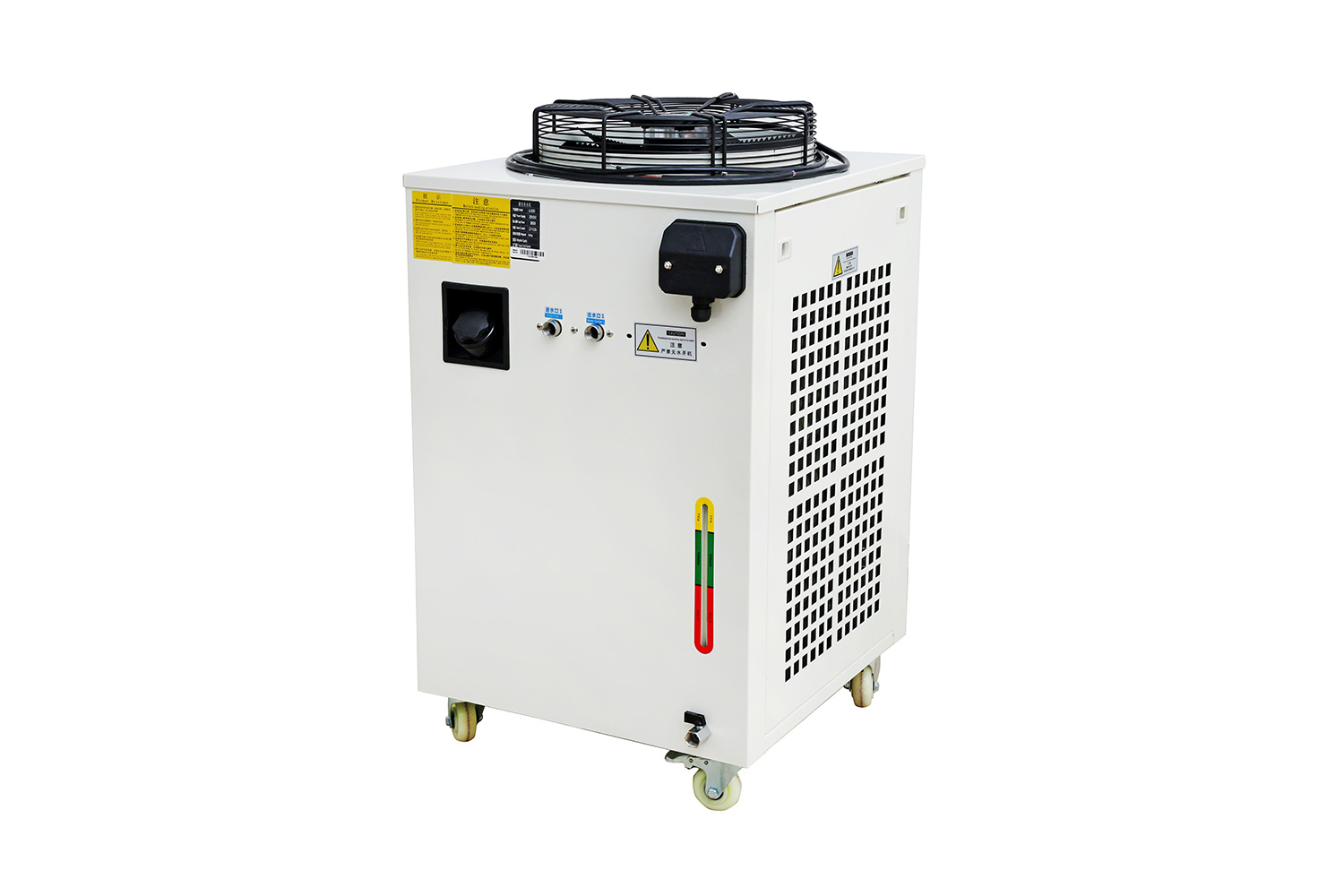

A laser cooling solution designed for a wide range of non-metal processing applications The Blue Penguin JL series chiller, equipped with an advanced temperature control system, can be quickly integrated with CO₂ lasers to form a stable and reliable processing unit.
Key Features: Precise temperature control, flexible compatibility, and stable operation—easily adaptable to laser powers from 600W to 42,000W
Pain Points Solved: Effectively prevents laser overheating, reduces maintenance costs, and ensures long-term high-performance operation
| MODEL | Temperature Precision | Rate Flow | Max.Pump Pressure | Refrigerant | Applicable fiber laser power |
|---|---|---|---|---|---|
| JL-3000 | 2~10L/mi | 10~70M | 50W/℃ | ||
| JL-3200 | 0 | 0 | 100W/℃ | ||
| JL-5000 | ±0.3℃ | 10~15L/min | 10~25M | R-410A | 0.75KW |
| JL-5200 | ±0.3℃ | 13~15L/min | 12~25M | R-410A | 1.43KW |
| JL-5300 | 0 | 0 | 0 | R-410A | 0W |
| JL-5600 | 0 | 0 | 0 | R-410A | 0W |
| JL-5800 | ±0.5℃ | 13~75L/min | 12~40M | R-410A | 2.4KW |
| JL-6000 | ±0.5℃ | 13~75L/min | 12~40M | R-410A | 3.14KW |
| JL-6100 | ±0.5℃ | 13~75L/min | 12~40M | R-410A | 3.14KW |
| JL-6500 | ±0.5℃ | 15~75L/min | 25~27M | R-410A | 4KW |
| JL-7500 | ±0.5℃ | 15~75L/min | 25~27M | R-410A | 5.1KW |
| JL-8300 | ±0.5℃ | 75L/min | 44~53M | R-410A | 9KW |
| JL-9500 | ±1℃ | 117~130L/min | 44~59M | R-410A | 15KW |
| MODEL | JL-8300A | JL-8300B |
|---|---|---|
| Operating Voltage | AC 1PH 220V | AC 1PH 220V |
| Operating Current | 1.2-13.5A | 1.3-13A |
| Frequency | 50HZ | 60HZ |
| Rated Power | 2.95W | 2.75KW |
| Rated Cooling Capacity | 6035 Kcar/h | 5780 Kcar/h |
| 7.1KW | 6.8KW | |
| 24140 Btu/h | 23120 Btu/h | |
| Refrigerant | R410a | |
| Pump Voltage & Power | 220V/300W | |
| Max. Head | 30M | |
| Max. Flow Rate | 80L/min | |
| Water Inlet/Outlet | R1/2 Internal Thread | |
| Max. Reservoir Capacity | 45L | |
| Chiller Dimensions (L*W*H) | 650*580*1100mm | |
| Package Dimensions (L*W*H) | 700*630*1250mm | |
| Net Weight | 88KG | |
| Gross Weight | 100KG | |
