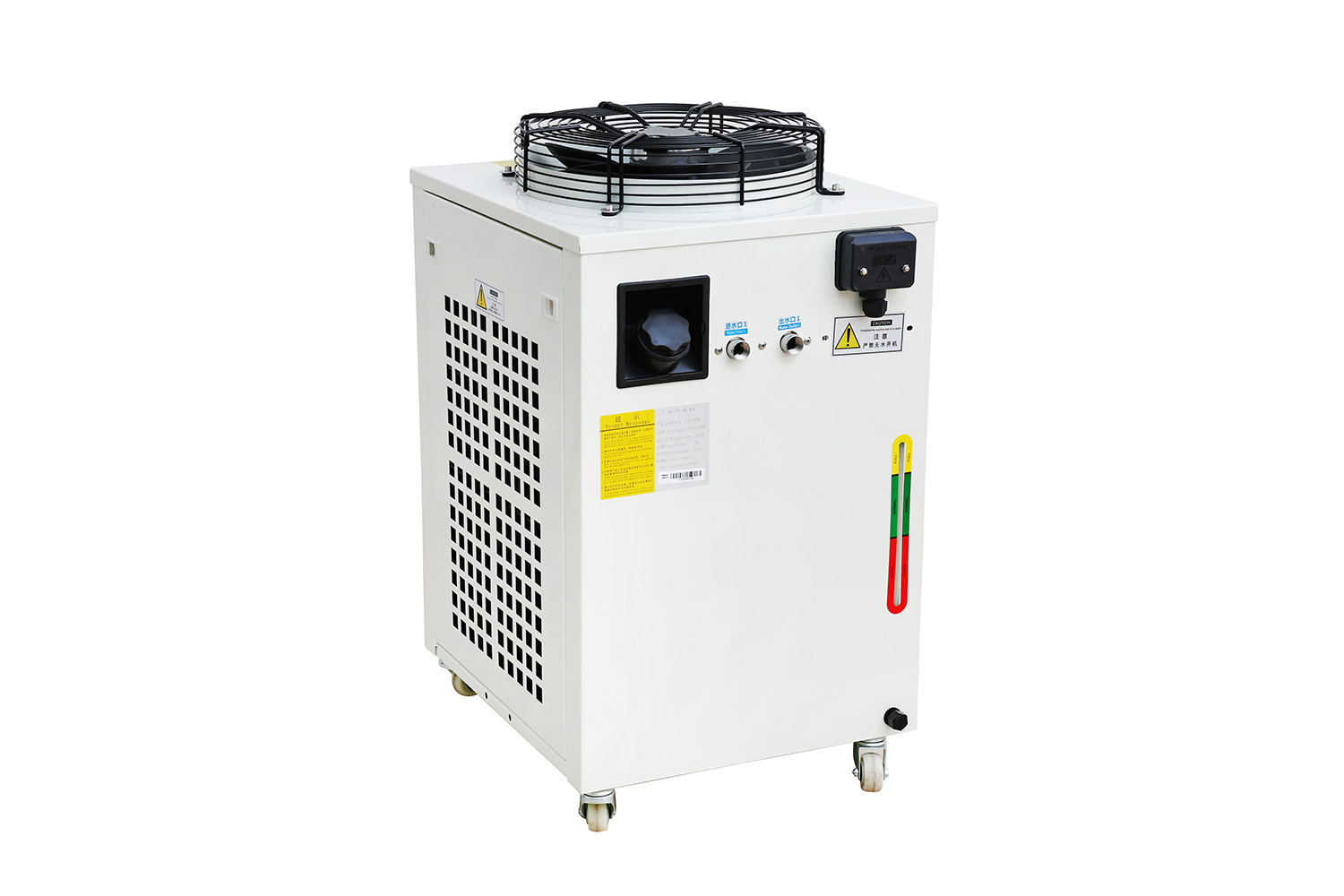

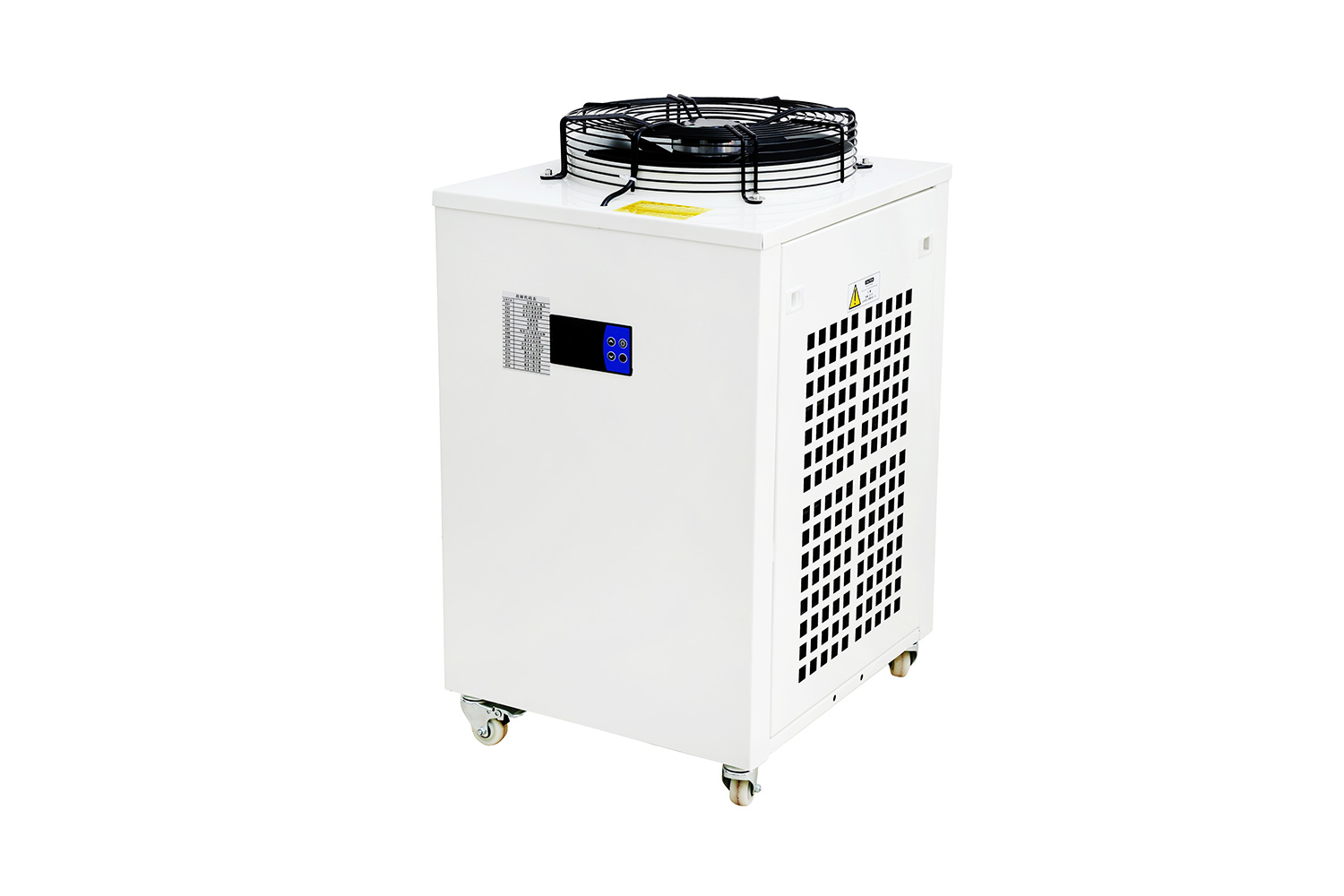

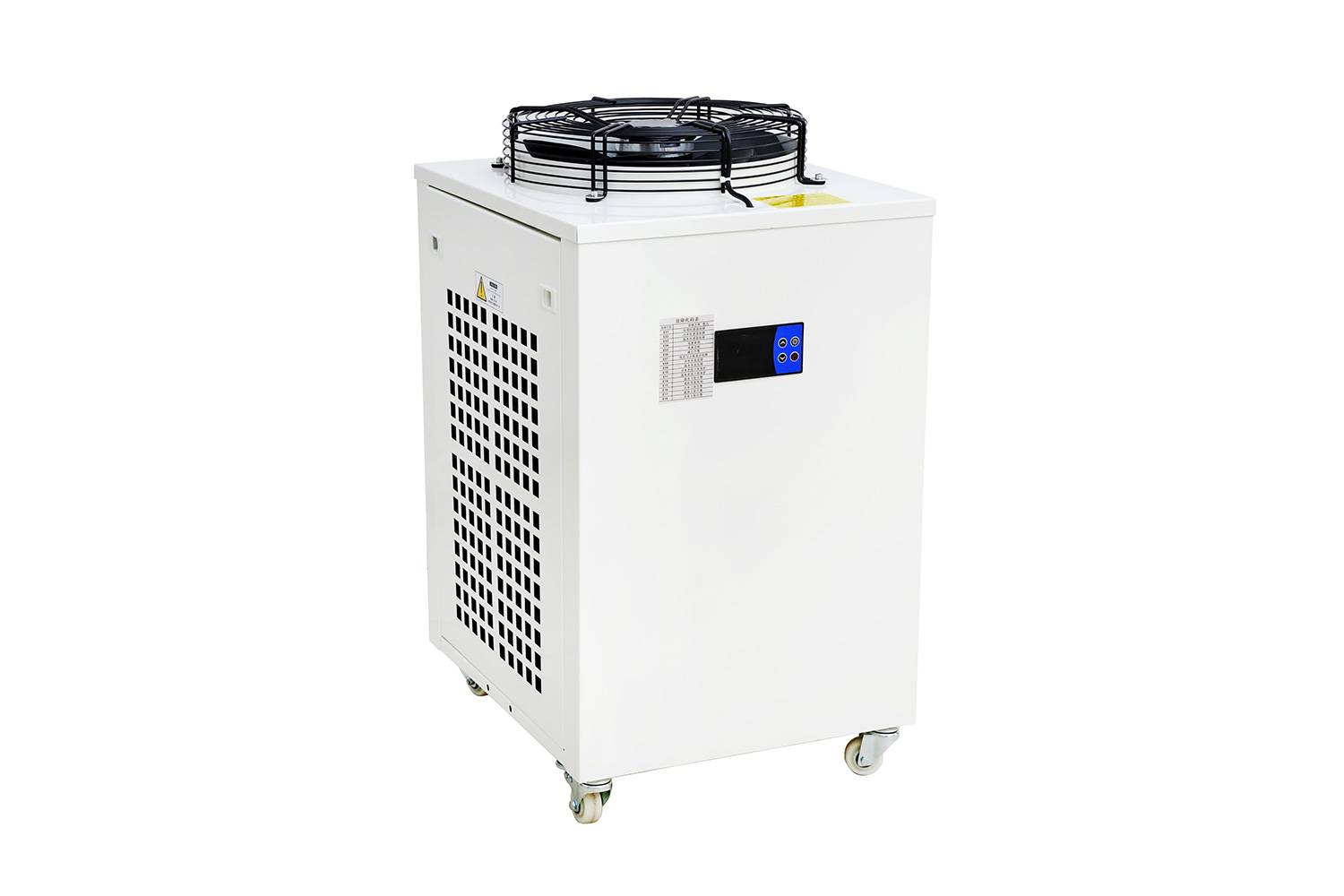

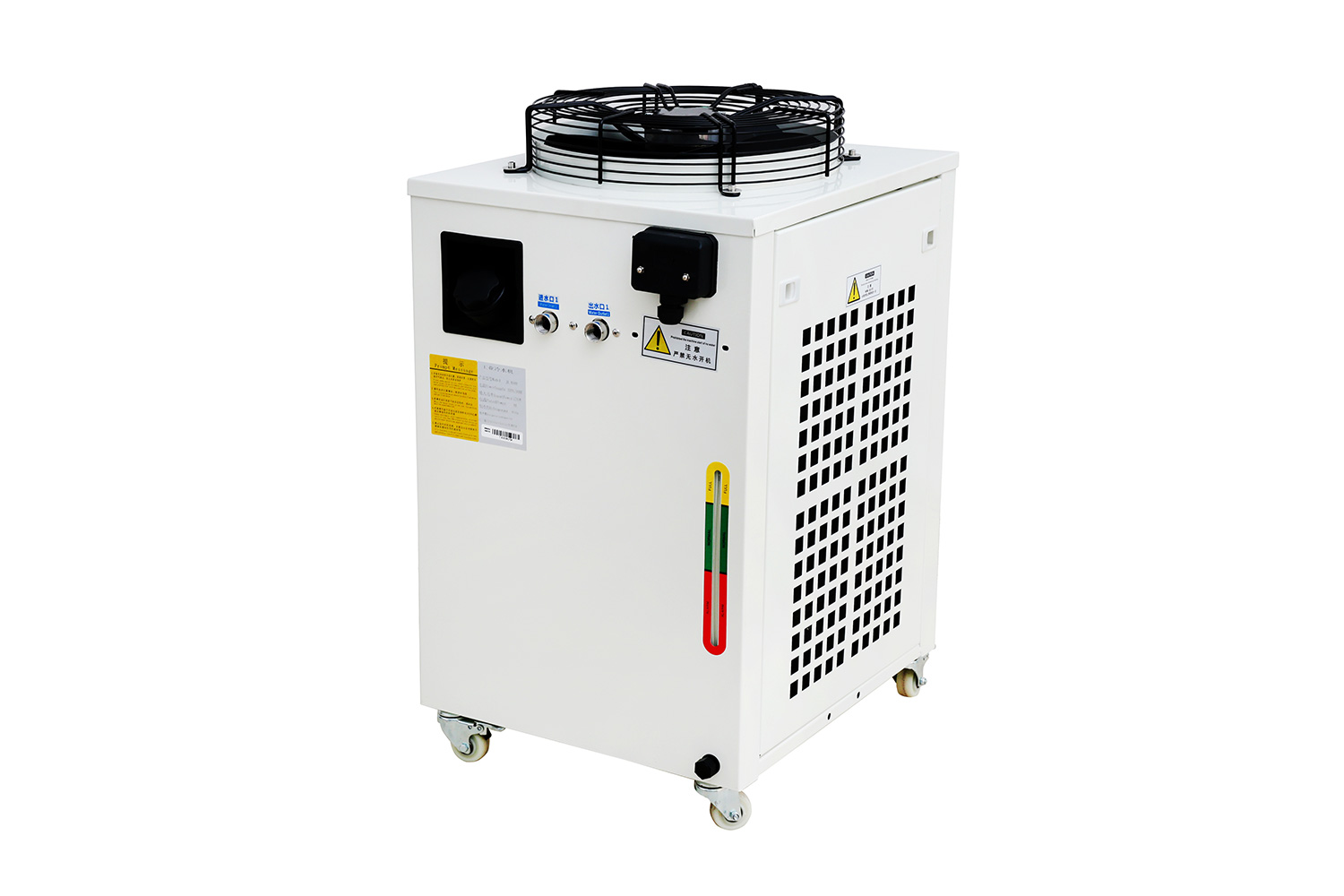

JL-6500 CO2 Laser Chiller

JL-6500 CO2 Laser Chiller

1.Designed for precise cooling of 400W CO₂ laser glass tubes or 150W CO₂ laser metal tubes, it maintains a constant temperature to ensure efficient and stable laser operation while optimizing overall performance.
2.Equipped with a high-performance pump that ensures stable and reliable coolant circulation to the laser tube.
3.Integrated multiple alarm and protection features, including overtemperature, flow rate, and compressor overcurrent protection, enhancing the safety of both the chiller and laser system.
4.Compact and portable, it is suitable for various equipment such as UV-LED light sources, high-speed spindles, motorized spindles, CNC machines, jig borers, grinders, machining centers, laser markers, laser engravers, laser welders, UV inkjet printers, and laser cutters.
  • Energy Saving

  • Over Temp Alarm

  • Overcurrent Protection For compressor

  • Flow Alarm

  • Dual Temp Control

Standard Series Selection Guide:
MODEL Temperature Precision Rate Flow Max.Pump Pressure Refrigerant Applicable fiber laser power
JL-3000   2~10L/mi 10~70M   50W/℃
JL-3200   0 0   100W/℃
JL-5000 ±0.3℃ 10~15L/min 10~25M R-410A 0.75KW
JL-5200 ±0.3℃ 13~15L/min 12~25M R-410A 1.43KW
JL-5300 0 0 0 R-410A 0W
JL-5600 0 0 0 R-410A 0W
JL-5800 ±0.5℃ 13~75L/min 12~40M R-410A 2.4KW
JL-6000 ±0.5℃ 13~75L/min 12~40M R-410A 3.14KW
JL-6100 ±0.5℃ 13~75L/min 12~40M R-410A 3.14KW
JL-6500 ±0.5℃ 15~75L/min 25~27M R-410A 4KW
JL-7500 ±0.5℃ 15~75L/min 25~27M R-410A 5.1KW
JL-8300 ±0.5℃ 75L/min 44~53M R-410A 9KW
JL-9500 ±1℃ 117~130L/min 44~59M R-410A 15KW
Product Parameters
MODELJL-6500AJL-6500B
Operating VoltageAC 1PH 220VAC 1PH 220V
Operating Current0.8-8A0.9-8A
Frequency50HZ60HZ
Rated Power1.76KW1.9KW
Rated Cooling Capacity2975 Kcar/h3485 Kcar/h
3.5KW4.1KW
11900 Btu/h13940 Btu/h
RefrigerantR410a
Pump Voltage & Power220V/200W
Max. Head22M
Max. Flow Rate70L/min
Water Inlet/OutletR1/2 Internal Thread
Max. Reservoir Capacity18L
Chiller Dimensions (L*W*H)570*465*820mm
Package Dimensions (L*W*H)610*510*960mm
Net Weight52KG
Gross Weight58KG
Note: The technical parameter information of the products on this site is for reference only and is subject to the final product as delivered.
